Technical data

Working voltage
DC6V (CR2016×2)
Working frequency
433.92MHz
Working current
≤ 10mA±3mA
Encoder mode
learning code
Modulation
AM
Color
White
Working temperature
-10℃~+50℃
Dimension
59*59*13mm

Description

The wireless calling transmitter adopts the latest RF technology and digital identification technology, which makes the products stable and high performance, as well make the system very easy to know which one is in need of service.

The wireless calling system is widely used in restaurants, hospitals, cafes, super markets, bars, KTV, banks, factories etc. to improve work efficiency.

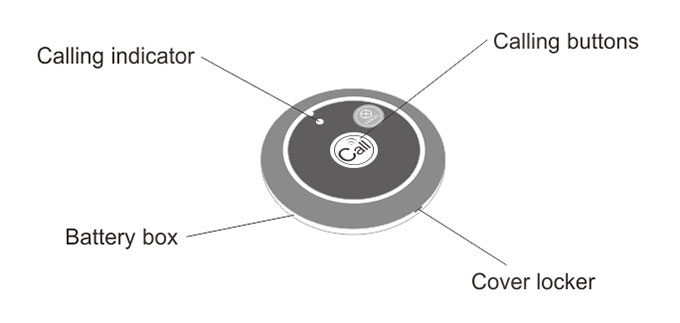

Diagram
