Technical data

Working voltage
DC12V (23A12V×1)
Working frequency
433.92MHz
Wokring current
≤26mA±5mA (power saving mode)
Encoder mode
learning code
Modulation
AM
Color
Red
Working temperature
-10℃~+50℃
Dimension
59*59*30mm

Description

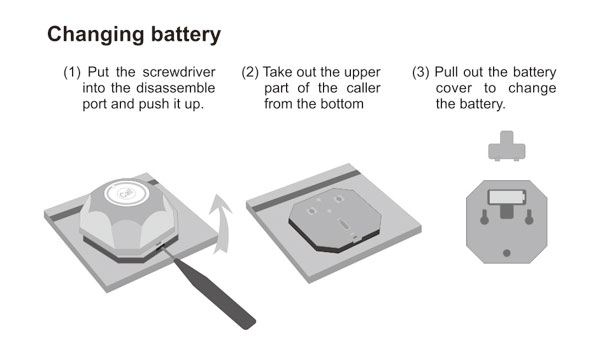

This is 500 meters transmitter. It works with 999 channel receivers, with learning code technology. This kind of transmitter can be put on the table or stick on the wall. When the customers need service, he/she just press the button, the receiver will receive a RF signal and know which table or room needs service.The new design makes it easy to change the battery.

Wireless Calling System is a kind of electronic product providing calling service. It uses latest RF technology which includes software and hardware. No need wiring, it is widely used in restaurant, cafe, bar, KTV, club, shop, hospital and so on.

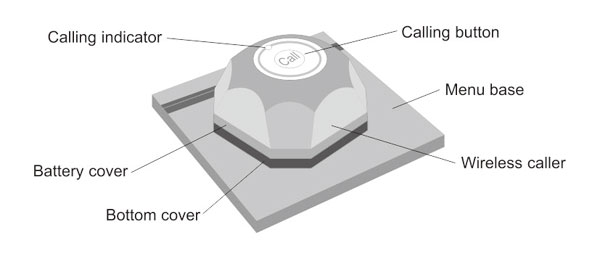

Diagram

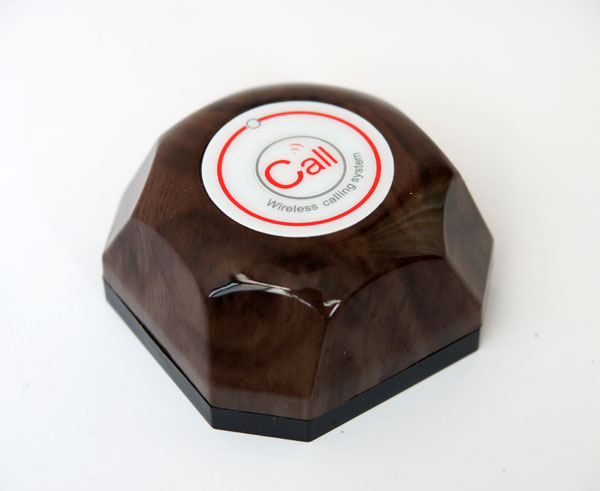

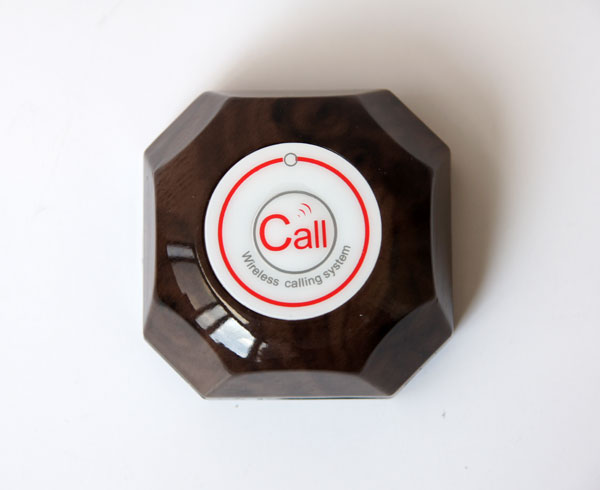

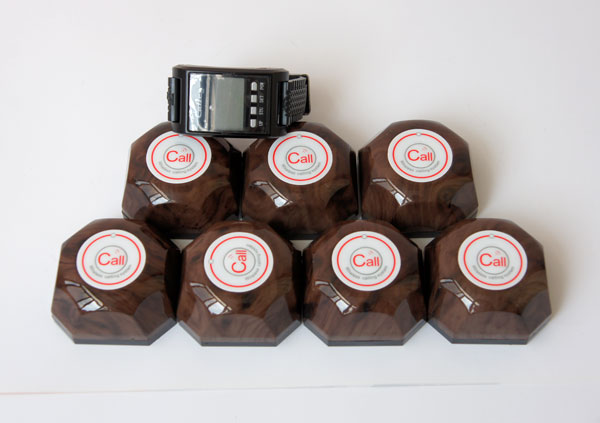

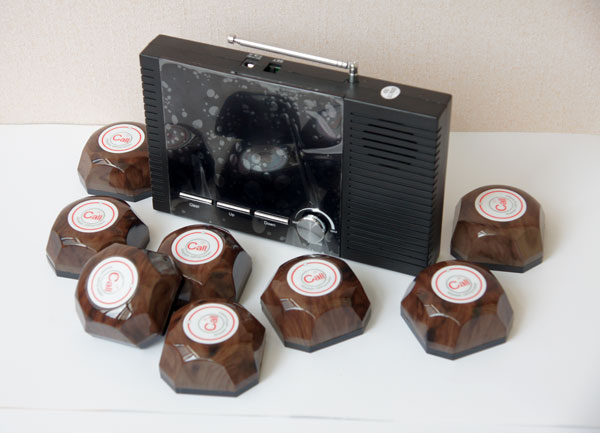

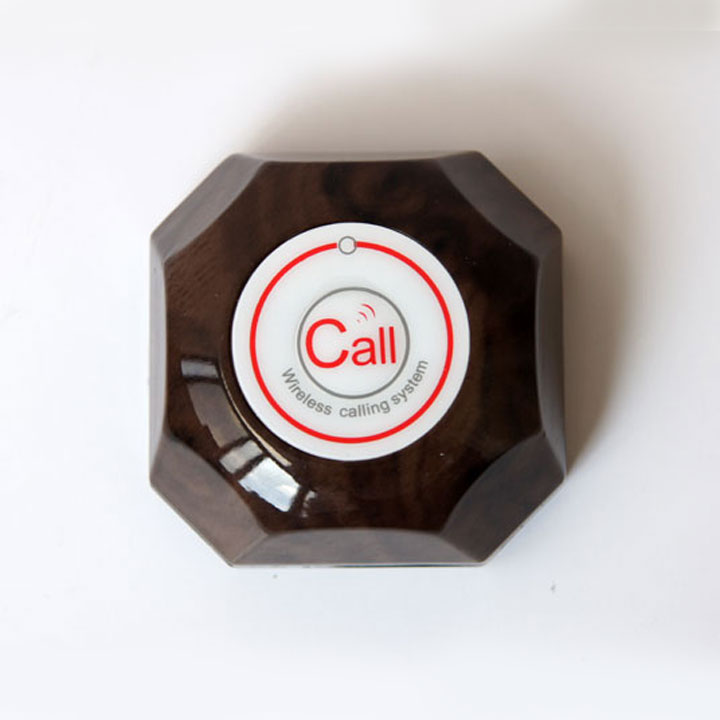

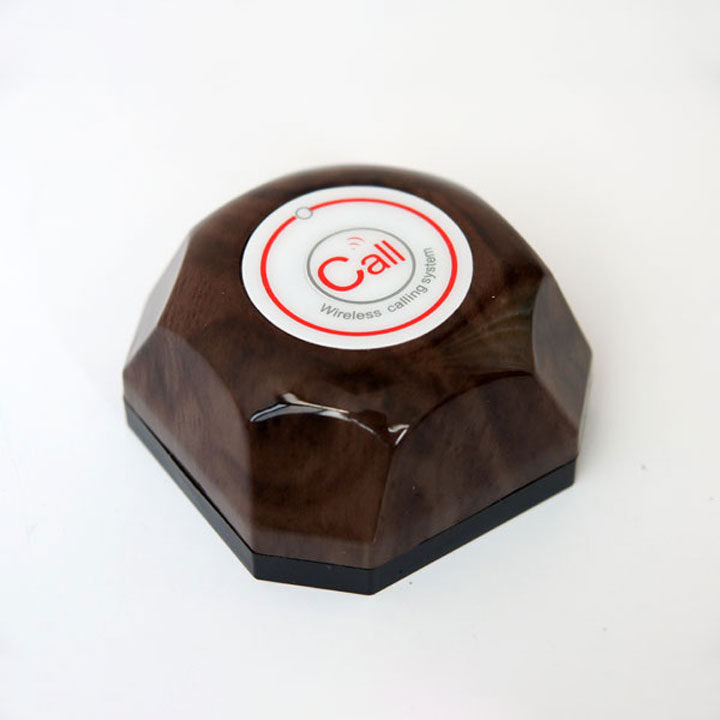

Photos

Service
