Technical data

Working voltage
DC9V (power adapter)
Working frequency
433.92MHz
Standby current
<30mA
Wokring current
<100mA
Encoder mode
learning code
Modulation
AM
Color
Silver
Working temperature
-10℃~+50℃
Dimension
140*100*25mm

Description

The wireless calling transmitter can send 999 different signals by combination from digit 0 ~9. It adopts the latest RF technology and digital identification technology, which makes the products stable and high performance, as well make the system very easy to know which one is in need of service.

The wireless calling system is widely used in restaurants, hospitals, cafes, super markets, bars, KTV, banks, factories etc. to improve work efficiency.

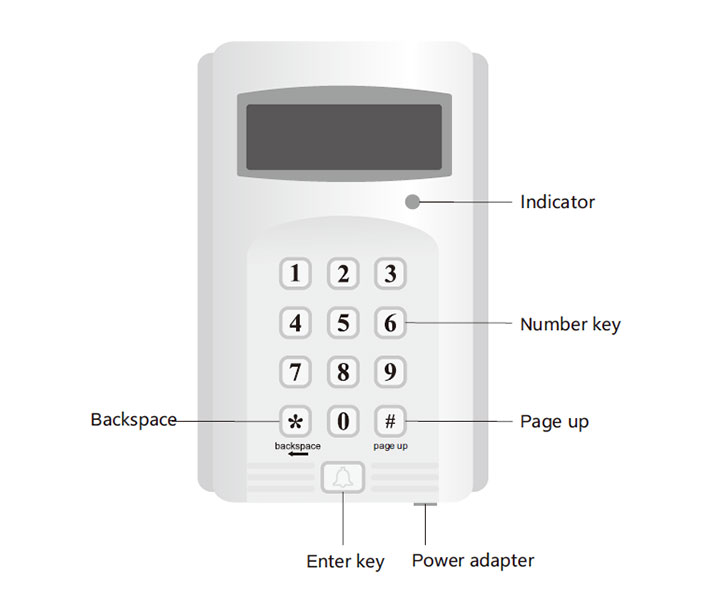

Diagram

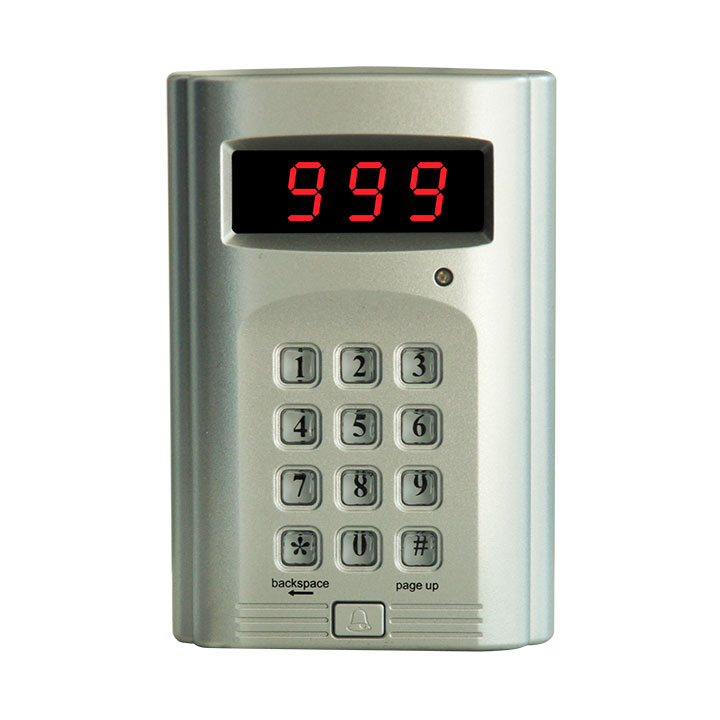

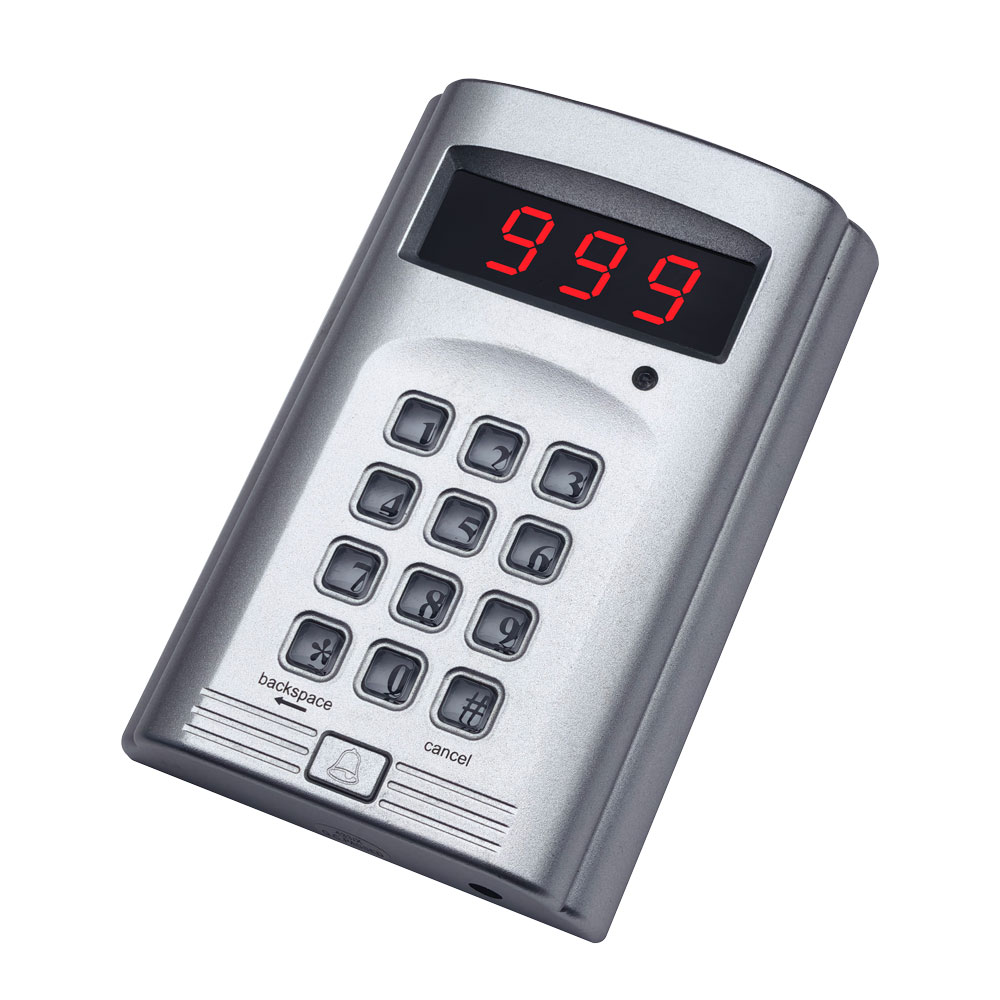

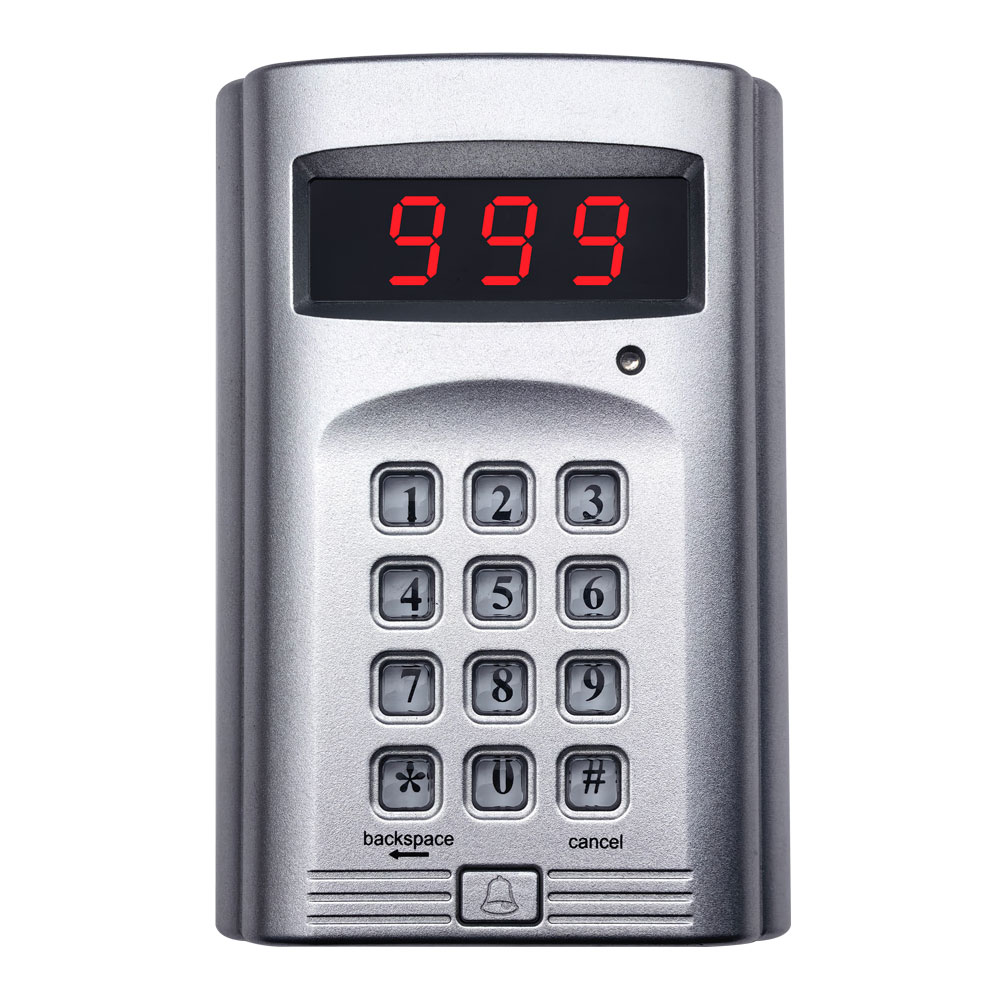

Photos
